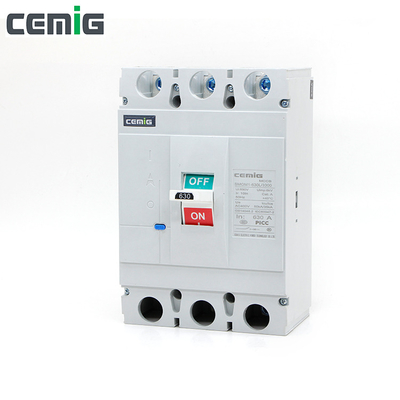

CEMIG SMGM1 Series Best Price For CM-1 Thermal Magnet Type Cast Case Circuit Breaker MCCB 400A-630A 3P 50KA

1.0 Pieces
MOQ
CEMIG SMGM1 Series Best Price For CM-1 Thermal Magnet Type Cast Case Circuit Breaker MCCB 400A-630A 3P 50KA
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: SMGM1-630
Breaking Capacity: 50KA
Rated Voltage: 400VAC
Rated Current: 400A-630A
Type: Moulded Case Circuit Breaker
Rated current: 400A-630A
Standard: GB10963/IEC60898
Breaking capacity: 15KA-70KA
Rated voltage: 230/400V
Frequency: AC 50/60 Hz
Pole: IP,2P,3P,4P
Poles Number: Other
Grundinformation
Model Number: SMGM1-630
Zahlung und Versand AGB
Packaging Details: Paper carton & as your request
Supply Ability: 200000 Piece/Pieces per Month
Produkt-Beschreibung
Product Description

Product features

over load protection,short circuit protection, under voltage protection

Application

SMGM1 series of moulded case circuit breakers are applied to frequently changeove the circuit of rated insulation voltage of 800V (SMGM1-63 is 500V). AC 50Hz, rated voltage 690V or below (SMGM1-63 is 400V). rated operating current 800A, or start the motor not frequently (SMGM1-800 without motor protection). The bredkers provided with overload short-circuit and under-voltage protection function to protect the lines and power equipment from damage.

The product can be mounted vertically or horizontally.

The main technical parameters

Model SMGM1-63 SMGM1-125 SMGM1-250 SMGM1-400 SMGM1-630 SMGM1-800
Frame current Inm(A) 63 125 250 400 630 800
Rated voltage In(A) (6),10,16, (10),16,20,25, 125,140, 250,315, 400,500,630 630,700,800
20,25,32, 32,40,50,63, 160,180,200 350,400
40,50,63 80,125 225,250
Number of poles 3 4 2 3 4 2 3 4 2 3 4 2 3 4 3 4
Rated insulation voltage Ui(V) AC500 AC800
Rated working voltage Ue(V) AC400 AC400,AC690
Rated impulse withstand 6000 8000
voltage Uimp(V)
Arcing distance(mm) 50 100
Breaking capability grade L M L M H L M H L M H L M H M H
Limit short-circuit breaking capability Icu (kA) AC400V 25 50 35 50 85 35 50 85 50 65 100 50 65 100 75 100
Running short-circuit breaking capability Ics (kA) AC400V 18 35 22 35 50 22 35 50 35 42 65 35 42 65 50 65
Operation ON 6000 3000 2000 1500 1000
characteristics(times) OFF 8500 7000 4000 4000 2500
Total 14500 10000 6000 5500 3500

Company Information

FAQ

FAQ

Q: How and how long can I get a sample to check your quality? can I expect to get the sample?

A: After price confirmation, you can require for samples to check our quality. Then after you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

Q: Can you do the design for us?

A: Yes. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

Q: What about the lead time for mass production?

A: Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 100,000 mcb within a week. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.

Q: What kind of material we use?

A: Fire-resistance plastic, red copper, 85%silver contact.

Q: Do you have inspection procedures for circuit breakers?

A: 100% self-inspection before packing

Q: Can I have a visit to your factory before the order?

A: Welcome! Our factory address: NO.368 WEST CHUANGXIN STREET, WENGYANG, YUEQING, ZHEJIANG, CHINA
